This chapter describes how to add trusty client .

There are three method to open the service window:
the first: click 'Client' ->'Add'
the second: click the 'Add' button on the toolbar of the main interface of INetDisk server
the third: Right-click the in the IP list,and select 'Add Client'

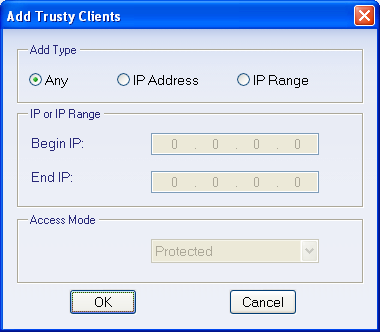

The 'Add Client' dialog will show up like this:

Any: all the client computer Have permission to visit the shared disk .
IP Address: Add one Client which have the IP you set in Begin IP can access the shared disk.
IP Range: Add the range of client which have the IP between 'Begin IP' to 'End IP' can access the shared disk.

Begin IP:The IP range of start ip address
End IP:The Ip range of end ip address

Access Mode:set the access mode for ervery client .

click the 'OK' button return the main interface.
